Garage Door Bottom Seal Replacement in Calgary
Verified Calgary Seal Service
Proof Before We Replace the Seal
These are the trust markers behind the quote — accreditation, industry membership, protected brand ownership, and local experience on Calgary garage doors.
BBB Accredited
Verified third-party accreditation
2× Consumer Choice Award Winner
Recognized by Calgary homeowners
Canadian Door Institute Member
Industry standards and training
Registered Trademarks
TMA1352082 · 98141232
Garage door bottom seal replacement removes the worn rubber seal (also called weatherstrip or astragal) at the bottom edge of your garage door and installs a new one to block drafts, water, dust, pests, and debris. In Calgary, professional bottom seal replacement costs $180–$340 + GST depending on door size and whether the retainer needs replacing.
Below, we'll walk through what the seal actually does, how to tell when yours has failed, what a retainer is, and why Calgary weather destroys bottom seals faster than almost any other Canadian market.
What Does a Garage Door Bottom Seal Do?
The bottom seal (also called weatherstrip or astragal) is your garage door's first line of defence against Calgary's elements. When it fails, you'll notice immediately — cold drafts in winter, water pooling after rain or snowmelt, dust everywhere, and possibly mice finding their way in.
- Blocks drafts — prevents cold air in winter, hot air in summer
- Keeps out water — stops rain, snowmelt, and puddles
- Prevents dust and debris — barrier against leaves, dirt, road grit
- Deters pests — seals gaps mice and insects use to enter
- Reduces noise — cushions the door when closing
- Improves energy efficiency — especially for heated garages or rooms above
Bottom Seal Replacement Pricing — Calgary
What's included: new rubber seal, professional installation, door inspection, and adjustment to ensure proper floor contact.
| Service | Door Size | Price (+ GST) |
|---|---|---|
| Seal Replacement Only | Single Door | $180 + GST |
| Seal Replacement Only | Double Door | $200 + GST |
| Seal Replacement Only | 18-Foot Door | $220 + GST |
| Seal + Retainer Replacement | Single | $265 + GST |
| Seal + Retainer Replacement | Double | $285 + GST |
| Seal + Retainer Replacement | 18-Foot Door | $340 + GST |
What Is a Retainer and When Does It Need Replacement?
The retainer is the aluminum or plastic channel attached to the bottom panel that holds the rubber seal in place. When the retainer is in good shape, you only need the seal replaced. When it's damaged, a new seal won't stay in — you need both.
Seal-Only Works When:
- Retainer is straight and undamaged
- No rust, cracks, or missing sections
- Seal slides in and out easily
You Need Retainer + Seal When:
- ✗Retainer is cracked, bent, or warped
- ✗Sections are corroded or rusted through
- ✗Pieces are missing or broken off
- ✗Previous seal was glued or stapled (improper installation)

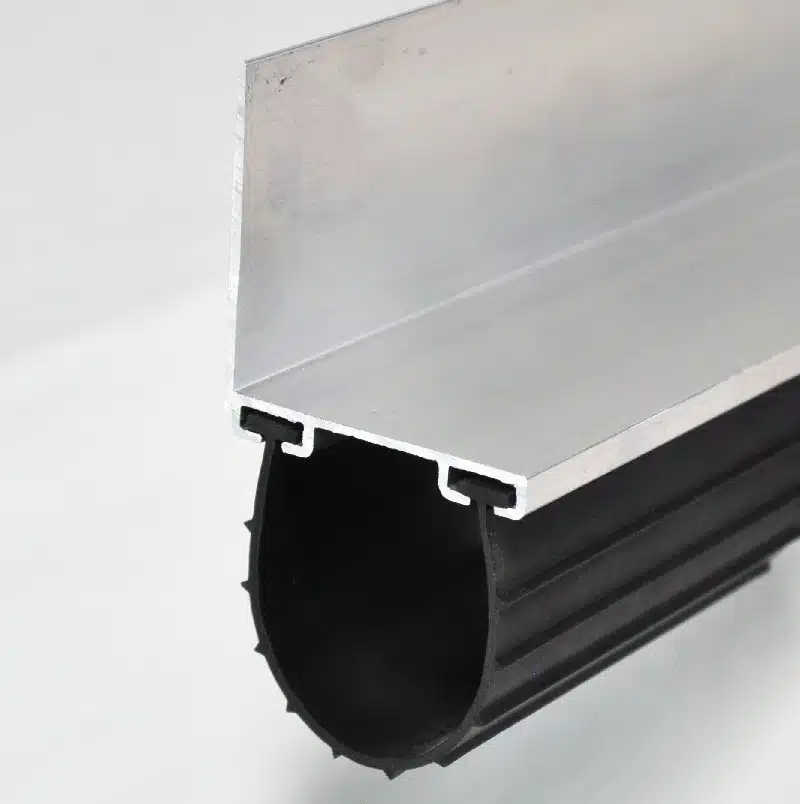

We install durable L-shaped aluminum retainers — a significant upgrade over plastic retainers that crack in Calgary's cold.
Signs Your Bottom Seal Needs Replacement
Bottom seals typically last 5–10 years in Calgary, but our extreme climate shortens that.
Visible Damage
- ✗Cracking or splitting — rubber has dried out
- ✗Flattening — seal is compressed and won't spring back
- ✗Brittleness — rubber crumbles when touched
- ✗Missing sections — pieces have broken off
- ✗Hardening — seal feels stiff instead of flexible
Performance Issues
- !Visible daylight under the closed door
- !Water pooling inside after rain or snowmelt
- !Cold drafts from the garage in winter
- !More dust and debris than usual on the floor
- !Signs of mice or insects entering
- !Increased heating costs (heated garage)
Why Calgary Destroys Bottom Seals Faster Than Anywhere Else
Temperature Swings
−30°C to +30°C — a 60-degree range. Constant expansion and contraction fatigues rubber, causing cracks and loss of flexibility far faster than milder climates.
UV Exposure
South-facing doors get intense UV radiation, especially during Calgary's sunny winters. UV breaks down rubber compounds, hardening one side of the seal before the other.
Road Salt
Calcium chloride tracked into the garage accelerates rubber deterioration. Worst near the ends of the seal where tires enter — exactly where you need the seal most.
Dry Climate
Calgary's low humidity dries out rubber seals faster than humid regions. Without moisture, rubber loses plasticizers and becomes brittle within 3–5 years.

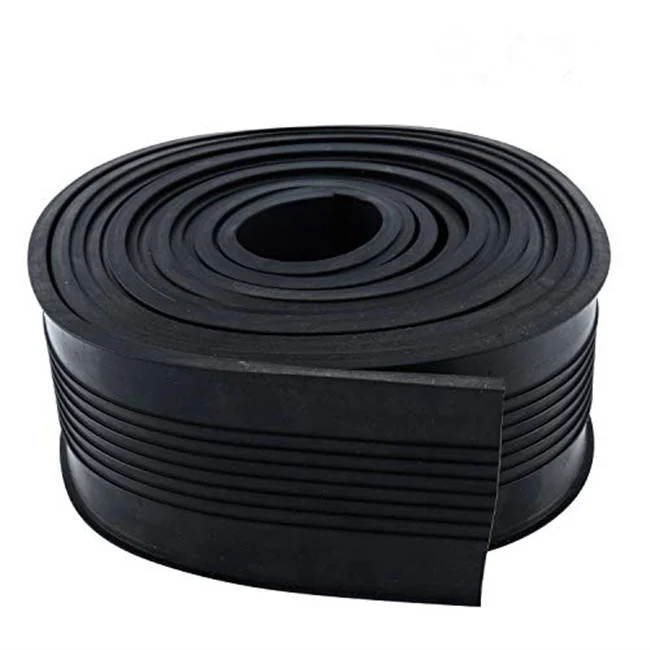

Types of Garage Door Bottom Seals
We install the right type for your door — and recommend upgrades when your current type isn't performing.
T-Style (T-End)
T-shaped profile that slides into a retainer channel. Easy to replace, excellent sealing. Works with most standard doors.
Beaded (Bead-End)
Rounded beads snap into a grooved retainer. Common on pre-2000 doors. Good sealing but harder to find replacements.
J-Type
J-shaped profile wraps around the bottom of the door. Found on wooden doors or doors without a retainer channel.
Bulb Seal
Rounded bulb compresses against the floor. Conforms to surface irregularities — best option if your garage slab has settled unevenly.
Honest Talk: When a New Seal Won't Solve the Problem
Most companies won't tell you this upfront — they'll replace the seal, collect the payment, and leave you wondering why water is still getting in. A new seal helps significantly, but it doesn't guarantee a 100% watertight seal if there are underlying issues:
Settled Garage Floor
One side of the slab has sunk over time due to soil settlement. This creates a gap that no seal can fill — the floor moved, not the door.
Warped Bottom Panel
If the bottom door panel is bent or warped, the seal won't make consistent contact across the full width.
Track Misalignment
If tracks aren't properly aligned, the door closes unevenly, leaving gaps on one side.
Our approach: If we notice any of these during installation, we'll show you exactly what's happening and discuss your options. While the bottom seal isn't as critical to garage door operation as springs, cables, or the opener, it's still worth keeping in good shape — and worth telling you the truth about when a seal replacement won't actually solve the problem you called us about.
Replacing the Same Seal Again? It Might Not Be the Seal
If you're calling us for the second or third seal on the same door, the seal may not be the actual problem.
If you're calling us to replace the bottom seal for the second or third time on the same door, the seal probably isn't the actual problem.
In our experience across 32,000+ Calgary jobs, repeat seal replacements on the same door usually point to one of three things going on with the door itself — and putting in a fourth seal won't fix any of them.
The bottom panel is failing
On a 15+ year-old door, the bottom panel takes the most abuse — water exposure, road salt, snow piled against it, the occasional bumper tap. When the panel starts to warp, rust, or delaminate, the seal can't seat properly across the full width because the surface it's clamping against isn't straight anymore.
The garage floor has settled
Many older Calgary garages now show measurable slab settlement on one side. Once the gap is beyond what a standard seal can bridge, you can keep replacing the seal annually and water still comes in because the floor moved.
The whole door is at end-of-life
A door past 18–20 years where the seal is failing is usually showing the same end-of-life signs in the panels, spring tension, track alignment, and perimeter weatherstripping. One repair at a time can turn into a rolling bill.
What to do about it
If you're on your third seal replacement on the same door, the conversation worth having is whether you're maintaining a door at the end of its useful life. We can replace the seal — that's a $180–$340 + GST job and we'll do it the same day — but we'll also tell you honestly what we're seeing on the panel, the floor, and the rest of the door, and what your options look like.
If the door is fundamentally sound and the seal is the only failing component, replacement is the right answer. If the door is failing structurally, a Ryterna sectional with a 10-year panel warranty and factory-installed perimeter sealing is built to a different specification. Ryterna sectional doors start at $2,395 + GST installed in Calgary, and we're the only Canadian dealer that supplies them.
Our Replacement Process
In and out in 30–60 minutes. No mess, no fuss.
Inspect
Examine seal, retainer, bottom panel, and floor contact (5 min)
Assess Retainer
Determine if retainer needs replacing, explain cost difference
Remove Old
Carefully remove old seal and retainer if needed (5–10 min)
Install Retainer
If needed: new L-shaped aluminum retainer, measured and fitted (15 min)
Install Seal
New rubber seal slid into retainer, positioned for optimal contact (10 min)
Test
Door cycled several times to verify proper contact. Minor adjustments made.
Service Area — All Calgary
NW Calgary
Tuscany, Arbour Lake, Citadel, Evanston, Nolan Hill, Sage Hill, Royal Oak, Bowness, Brentwood, Varsity
NE Calgary
Taradale, Martindale, Skyview Ranch, Saddleridge, Coventry Hills, Cityscape, Redstone
SW Calgary
Signal Hill, Aspen Woods, Evergreen, Shawnessy, Killarney, Altadore, Marda Loop
SE Calgary
Mahogany, Cranston, Auburn Bay, McKenzie Towne, Copperfield, Douglasdale, Lake Bonavista
Surrounding areas: Airdrie, Cochrane, Chestermere, Okotoks.
Beyond Calgary: GDF services Edmonton and Saskatoon directly, with employee technicians in each market. Bottom seal replacement in those cities runs on the same $180–$340 + GST schedule as Calgary — no remote-dispatch surcharge, no Calgary-truck-trip fee. Call (403) 990-9536 to book.
Why Calgary Homeowners Choose Us for Bottom Seal Replacement
Bottom seal replacement is a small job. Most companies treat it that way. We work the job differently.
Transparent pricing on the page
No starting-from range that grows on the call. The price you see is the price you pay.
Honest assessments only
If the seal won't fix your problem, we'll tell you before installing it and leaving you to figure that out yourself.
L-shaped aluminum retainers
Plastic retainers crack in Calgary winters. Aluminum lasts.
Full door inspection included
While we're there, we check spring tension, cable wear, track alignment, and weather sealing at no extra charge.
2,630+ five-star Google reviews
Calgary's highest-rated garage door company by review volume.
32,000+ jobs across Calgary
Real first-party experience since 2019, not generic advice copied from a manufacturer brochure.
Employee technicians
GDF employees, not subcontractors. Same employee model on every call and warranty visit.
Local family business
Not a franchise. Not a call centre routing your job to whoever's closest.
Original Calgary Climate Research from GDF
We've been collecting service-call data across Calgary since 2019. These studies explain why Calgary climate affects garage doors, including bottom seals.
Why Calgary's Extreme Weather Destroys Garage Doors
Analysis of nearly four years of our service records, cross-referenced with historical weather data, shows how Chinook winds and polar vortex events cause garage door failure rates to spike by 180–280%. Bottom seal failures are part of that pattern — extreme freeze/thaw cycles harden rubber faster than the manufacturer's lifespan predictions account for.
Read the full researchWhy Calgary Garage Doors Stop Closing in Fall — The Sun Angle Effect
Every September, Calgary homeowners experience a puzzling problem: garage doors that worked all summer suddenly refuse to close. The opener light blinks, the door reverses, no visible obstruction. This isn't a malfunction — it's physics, and we documented it.
Read the full researchBottom Seal Replacement FAQ
Seal-only replacement starts at $180 + GST and runs up to $220 + GST. If the retainer also needs replacing, pricing runs from $265 + GST to $340 + GST, depending on door size. Includes new seal, installation, inspection, and adjustment. No weekend fees.
5–10 years in Calgary, but our extreme climate (temperature swings, UV, road salt, low humidity) can shorten that to 3–5 years — especially on south-facing doors.
Technically yes for T-style seals with a good retainer. But if the retainer is damaged, you'll need tools and experience to install a new one properly. DIY jobs with glue or staples usually fail within months. Professional installation starts at $180 + GST and lasts years.
Usually floor settlement — one side of the garage slab has sunk over time, creating a gap no seal can close. Could also be a warped bottom panel or misaligned tracks. We'll identify this during installation and explain your options honestly.
T-style seals work for most standard doors. Bulb seals are best for uneven floors. Our technician identifies your type and recommends the best option for your specific floor conditions.
Yes — sectional, one-piece, and roll-up doors. We carry T-style, beaded, J-type, and bulb seals for same-day service.
If your garage is heated, or if it's attached and shares a wall with your home, yes — a new seal cuts cold air infiltration and your heating system runs less. The savings won't be dramatic on their own, but combined with eliminating drafts, water entry, and pest access, the practical case for replacement is strong. If your garage is unheated and detached, the heating bill argument doesn't really apply — the seal still blocks water, dust, and pests, but you're not heating the space.
Two is usually fine. If you're replacing the seal for the third or fourth time on a door past 18 years and you're still seeing water or drafts, the seal probably isn't the actual problem anymore — the bottom panel, slab, or overall door condition is what's letting things in. On a 20-year-old door with chronic seal failures, the math usually favours a new door over another seal replacement that won't hold up.
Standard seal replacement carries a 1-year warranty against premature failure. Seal + retainer replacement carries the same 1-year warranty on the seal plus a 5-year warranty on the L-shaped aluminum retainer. The technician handling any warranty visit is a GDF employee, not a subcontractor. If you have your original receipt, that's all we need to verify the warranty.
