Side-Hinged Garage Doors in Calgary
Here's a problem most garage door companies can't solve: your garage has no headroom. Ceiling beams, ductwork, a car lift, storage racks — whatever the obstruction, a standard overhead sectional door won't work. Most installers will tell you "sorry, can't help" and walk away.
We don't. Ryterna's side-hinged doors swing outward on hinges — no tracks, no springs, no ceiling clearance needed. Same 40mm insulated steel construction as our sectional doors, but in a design that works where nothing else fits.
Why Calgary Homeowners Choose Side-Hinged Doors
Most garage door companies only sell overhead sectional doors because that's all their suppliers make. When you have a garage with low headroom, ceiling obstructions, or a unique architectural layout, they're out of options. Ryterna builds side-hinged doors with the same European engineering and insulation as their sectional line — and we're the only dealer in Canada.
No Overhead Clearance Needed
Zero headroom required. Perfect for garages with ceiling beams, ductwork, car lifts, or storage racks that block overhead tracks.
Same Insulation as Sectional
40mm double-skin steel with freon-free PU foam. U-value 1.2 W/(m²·K) — built for Calgary’s -30°C winters, not an afterthought.
Open One Leaf for Quick Access
Open just one side for pedestrian entry. No need to expose the entire garage to the cold — same convenience as a walk-through door.
No Springs, No Cables
Simple hinge-based design means no spring failures, no cable snaps, no annual maintenance calls. Fewer moving parts = fewer things to break.
Technical Specifications
Ryterna side-hinged doors — engineered to outperform North American alternatives.
| Specification | Ryterna Side-Hinged Door |
|---|---|
| Panel Thickness | 40mm double-skin steel |
| Insulation | Freon-free polyurethane (PU) foam |
| U-Value (Thermal) | 1.2 W/(m²·K) whole-door on SH2 Thermo variant (see SH2 vs SH2 Thermo below) |
| Steel Thickness | 0.5mm – 0.7mm per layer |
| Maximum Size (standard) | 3,000mm wide × 2,400mm high |
| Maximum Size (on request) | Up to 3,200mm × 3,500mm with factory consultation |
| Maximum Leaf Width | 1,500mm (59 inches) |
| Split Options | 50/50, 1/3–2/3, or custom |
| Threshold Options | Sloping, L-shaped, or flat |
| Security | Hinge-bolts standard, 3-point lock available |
| Opening Direction | Outward (standard), Inward, or Bi-fold |
| Automation | Compatible with swing-arm openers |
| Weathersealing | All-around perimeter rubber sealing |
Threshold Options
Choose the right threshold profile for how you use your garage.
| Threshold Type | Best For | Notes |
|---|---|---|
| Sloping (25mm) | Standard on every install — also the accessibility default for wheelchairs, strollers, rollators | Optional stainless steel cover on high-spec installations |
| L-Shaped | Workshops, utility rooms | Rebated like the door frame |
| Flat | Industrial drive-through, workshops with wheeled carts | 40/60/80mm flat level |
Four Design Families
Ryterna organizes side-hinged doors into four design families — each available in any RAL colour with your choice of panel profile and surface finish. Your design choice is independent of your construction tier (see SH2 vs SH2 Thermo below).

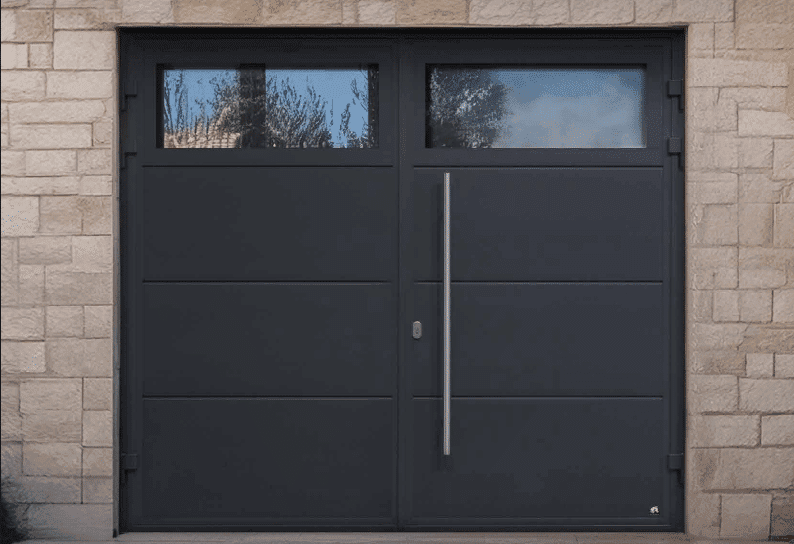

Traditional

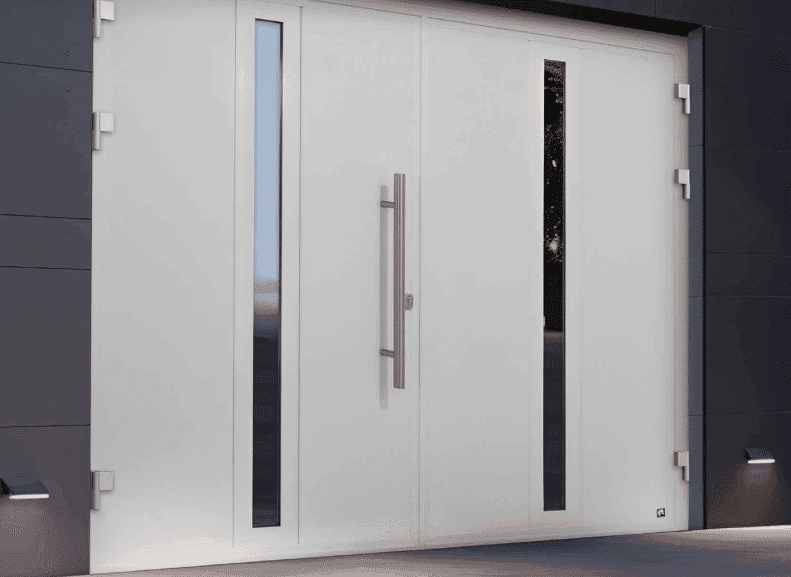

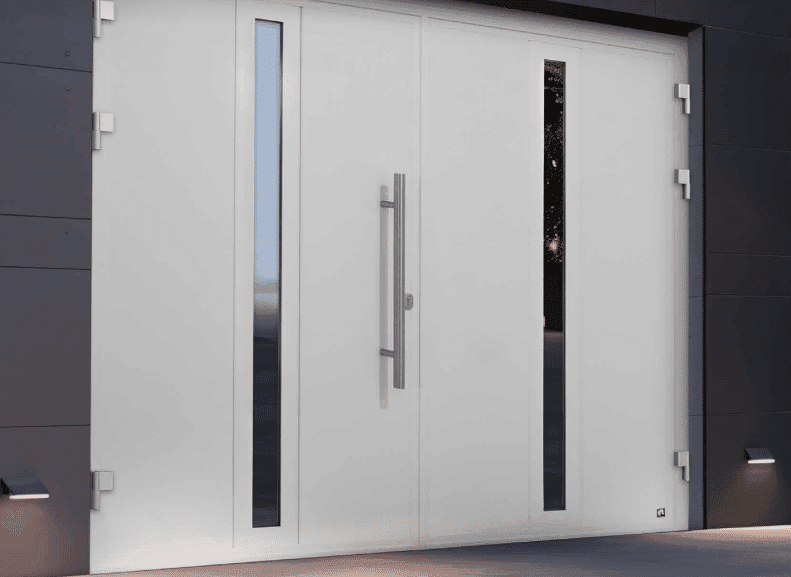

Modern

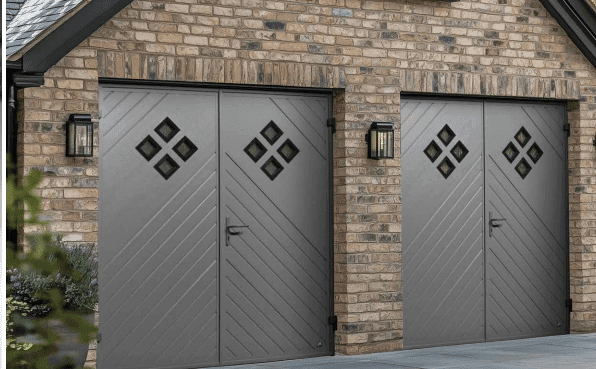

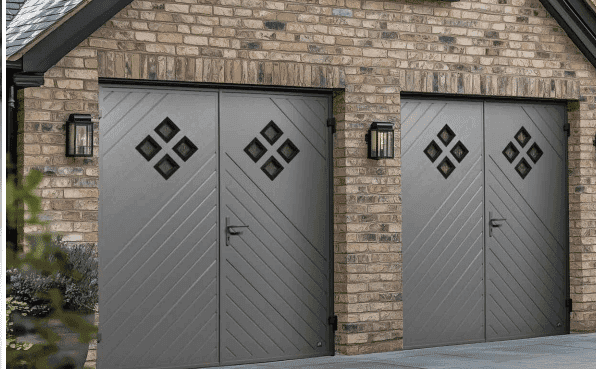

Diamond

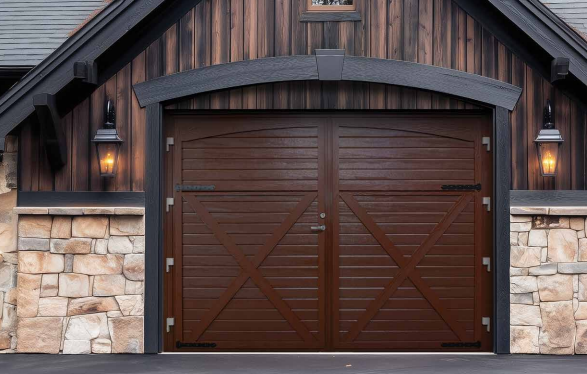

Retro / Carriage
SH2 vs SH2 Thermo: Which Construction Tier Fits Your Calgary Garage?
Most side-hinged garage doors in North America come in one flavour: steel frame, foam-filled panel, done. Ryterna sells two fundamentally different constructions under the same product family, and the difference matters more in Calgary than almost anywhere else.
| Specification | SH2 (Standard) | SH2 Thermo |
|---|---|---|
| Frame material | Zinc-coated steel, rebated | Aluminium with thermal break |
| Panel construction | 40mm PU foam core, double steel skin | 40mm Slick panel or aluminium sandwich, four variants (P, S, P+FV, S+FV) |
| Whole-door U-value | ~1.6 W/(m²·K), panel-insulated, frame is thermal bridge | ~1.2 W/(m²·K), panel and frame insulated |
| Wind resistance (tested) | Class C3 | Class C3 |
| Rain resistance (tested) | Standard perimeter seal | Class 6A, highest category |
| Air permeability (tested) | Standard perimeter seal | Class 4, highest category |
| Integrated shoot bolts | Optional | Standard |
| Lock configuration | 1-point standard, 3-point optional | 1-point standard, 3-point optional |
| Glazing option | Full-view (FV) safety glass panel, double-glazed, available | Full-view (FV) top band, double-glazed, on P+FV and S+FV variants |
| Typical use | Unheated detached garage, storage, traditional carriage application | Heated attached garage, garage-to-workshop conversion, home gym |
| Target homeowner | Wants the side-hinged format without premium pricing | Running the garage as conditioned space year-round |
When SH2 Standard is the right choice
SH2 is the right door if your garage is detached, unheated, or used primarily for vehicle storage. The steel frame is durable and the 40mm insulated panels handle Calgary's temperature swings without issue. You get the side-hinged format, zero headroom needed, no springs, no cables, at a more accessible price point than the Thermo tier.
When SH2 Thermo is the right choice
SH2 Thermo exists specifically for homeowners running their garage as heated conditioned space. The aluminium frame is engineered with a thermal break, a non-conductive barrier running through the frame profile that stops cold from migrating from the outdoor side to the indoor side. A standard SH2 steel frame in a heated Calgary garage will condense and frost up at the edges on a -30°C morning. The Thermo frame doesn't.
If you've converted the garage to a workshop, gym, studio, or year-round hobby space, or if you're planning to, this is the construction that was designed for you. Ryterna pitches SH2 Thermo explicitly for garages converted into hobby spaces, workshops, utility rooms. That's the customer this tier exists to serve.
Four Thermo variants explained
- SH2T P — 40mm Slick design panel, solid. The clean, minimalist look in a Thermo frame.
- SH2T S — 40mm aluminium sheet 'sandwich' fill, solid. Budget-tier Thermo for customers who want the thermal-break frame without a glazed top.
- SH2T P+FV — Slick panel with a safety glass double-glazed full-view band across the top. Adds natural light to a workshop or studio.
- SH2T S+FV — Aluminium sandwich fill with the same full-view glazing band.
All four variants share the same thermal-break aluminium frame, the same four-side perimeter sealing, and the same certified performance classifications. The choice is purely about panel fill and glazing preference.
Side-Hinged Garage Door Pricing in Calgary
Most garage door companies won't publish side-hinged pricing. Either they don't offer the product, or the price reveal happens only after a technician is in your driveway. We publish ours for the standard 9ft × 7ft single-car configuration, the most common size for Calgary detached-garage retrofits and heritage openings.
This section is wired to our live Calgary side-hinged price table, not hardcoded copy, so when we adjust SH2 pricing in the admin, this page can move with it.
Base Door Pricing (9ft × 7ft, Installed)
| Profile / Surface | Standard RAL | Custom RAL |
|---|---|---|
| Rib / Midrib Woodgrain / Flush / Microrib / Georgian | $4,325 | $4,880 |
| Slick / Midrib Smooth | $4,925 | $5,545 |
| Traditional H / BS (decorative glazed top) | $5,485 | $5,935 |
Ballpark range: $4,325 to $5,935 for a 9×7 installed, depending on profile and colour specification.
These are real installed numbers for the standard Calgary opening, not teaser prices that turn into a different conversation once we arrive on site.
Custom RAL pricing reflects factory colour work. If you are matching window trim, entry doors, or a heritage facade, that premium is usually where the visual payoff happens.
What's Included
The installed pricing above is meant to be decision-useful, so we spell out what is already covered instead of burying it in quote fine print.
- Professional installation by our employee technicians, no subcontractors
- Old door removal and disposal
- Free delivery and installation across Calgary, Edmonton, and Saskatoon service areas
- 10-year panel warranty, 5-year warranty on moving parts
- Same price evenings and weekends, no emergency fees, ever
What's not included: Doors can be shipped anywhere else in Canada for an additional delivery cost, quoted separately.
If your opening needs framing correction, structural repair, or non-standard electrical work, we quote that separately so the base door number stays honest.
Optional Upgrades
| Upgrade | Price |
|---|---|
| FV glazed panel (per leaf) | $640 |
| ‘Stabilus’ gas door stays (pair) | $88 |
| S5 stainless threshold cover | $226 |
| Chevron panel layout | $534 |
| Espagnolette lock (recommended above 2,700mm height) | $283 |
Most customers keep the base build simple, then spend their upgrade budget on the details they will actually notice every day: threshold finish, glazing, or hardware convenience.
The best-value upgrades for Calgary are usually the threshold cover for cleaner entry, gas stays for heavier leaves, and glazing when the garage doubles as a workshop or studio.
Example Configurations
These examples show how the base table and upgrade list combine in the real world, so you can place your project in the right bracket before asking us for a final drawing-based quote.

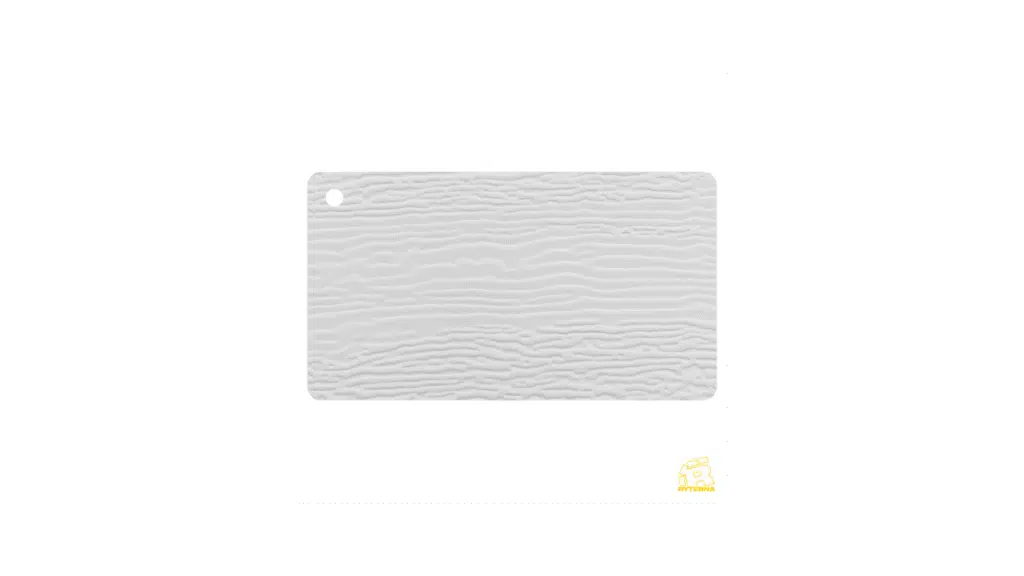

Budget single-car retrofit, Rib Woodgrain panel, standard RAL 9016 White, standard hardware: $4,325 installed.

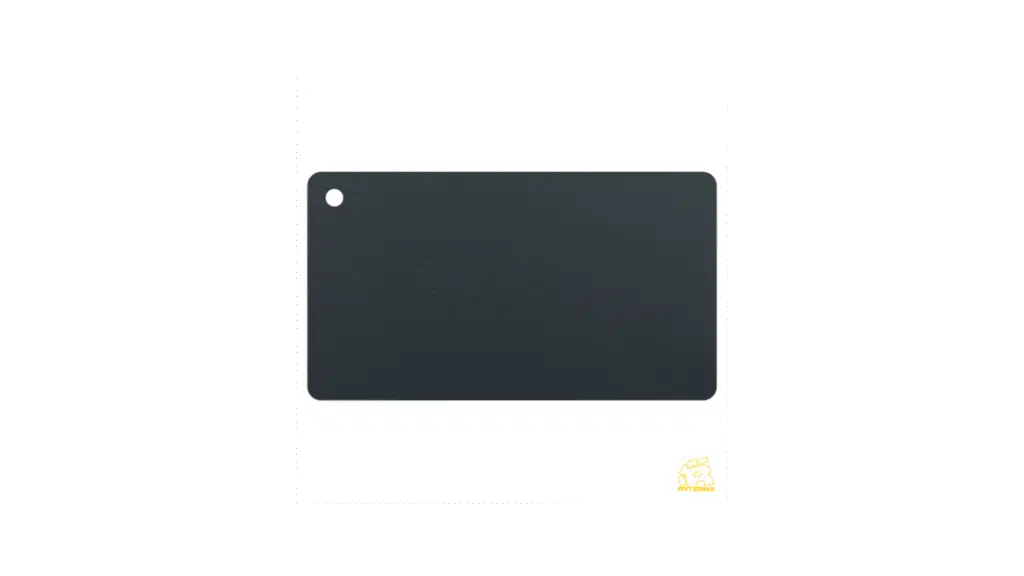

Mid-range modern install, Slick Smooth panel, custom RAL 7016 Anthracite, S5 stainless threshold cover, Stabilus gas door stays: $5,859 installed.
Heritage restoration, Traditional BS decorative glazed top, standard RAL, chevron panel layout to match period architecture: $6,019 installed.
Premium workshop conversion (SH2 Thermo), quoted separately from standard SH2 based on variant (P / S / P+FV / S+FV) and size. Contact us for a Thermo-tier quote.
If you already know the profile you want, we can usually narrow your real project into one of these buckets in a single phone call.
Pricing Notes
- All prices pre-tax.
- Pricing shown is for the 9ft × 7ft (2,750mm × 2,135mm) standard configuration. Larger doors, up to 3,200mm × 3,500mm, are quoted on request.
- Ryterna side-hinged doors are made-to-measure in Lithuania. Standard factory lead time is 2 to 4 months from order confirmation.
- ±10% pricing fluctuation is possible at order confirmation due to exchange rate and material cost movement.
- SH2 Thermo tier is quoted separately, contact us for a Thermo-specific quote based on variant and size.
Get a Written Quote
If you already know side-hinged is the right format, we can quote the exact SH2 configuration, finish, and upgrade path for your Calgary opening without making you play the usual pricing game.
(403) 990-9536Engineered for Calgary Weather
European garage door manufacturers test their products against harmonized EN performance standards, wind resistance, water tightness, air permeability, thermal transmittance. These are independent laboratory-tested classifications with specific test methodologies, not marketing claims. Most North American garage doors don't carry them because they were never tested.
Ryterna SH2 Thermo carries the following tested performance ratings:
| Classification | Rating | What It Means in Calgary |
|---|---|---|
| Wind Resistance | Class C3 (EN 12210) | Tested to hold structural integrity against Chinook-grade wind gusts. C3 is a strong rating for a hinged door, which is structurally more wind-exposed than a braced sectional. |
| Rain Resistance | Class 6A (EN 12208) | Highest category available. Driving rain and wind-driven snow, both routine in Calgary, do not penetrate the perimeter seal. |
| Air Permeability | Class 4 (EN 12207) | Highest category available. The tightest air seal rated on a hinged residential door. Directly measurable as reduced heating cost on a heated attached garage. |
| Thermal Transmittance | 1.2 W/(m²·K) whole-door | Whole-door rating including frame and seals, not just the panel center. Approximately R-8 equivalent across the installed assembly. |
Why these numbers matter
Most hinged garage doors leak air and moisture long before their mechanism fails. The bottom corners frost up at -30°C. Driving rain finds its way around the leaf edge. Chinook gusts rattle the perimeter seal loose over a few winters. These are seal and frame problems, not mechanism problems, and they're the reason most North American hinged doors don't carry EN performance classifications in the first place.
The Class 4 air permeability rating is the one most Calgary homeowners should care about if the garage is heated. It's the top category in the EN standard, tighter seals than Class 3, Class 2, or Class 1. On a heated attached garage at -30°C outdoor / +15°C indoor, that differential shows up on the gas bill every winter.
Whole-door vs centre-of-panel insulation
The 1.2 W/(m²·K) thermal transmittance rating is whole-door, it includes the frame, the perimeter seals, the threshold, and the panel together. North American insulation ratings typically quote centre-of-panel R-values, which ignore the frame and perimeter completely.
A centre-of-panel R-18 door with a steel frame and a cheap perimeter seal may perform worse in a real installed setting than Ryterna's 1.2 W/(m²·K) whole-door assembly. Apples-to-apples comparison requires the same test scope on both sides, which almost no one publishes.
That gap matters most in Calgary because the weak points are never the brochure numbers, they're the perimeter, the threshold, and the frame when the temperature swings hard.
Security That Actually Protects
Most swing-out garage doors on the market use a single-point lock and basic hinges. Pry the hinge side with a crowbar and you're in. Ryterna engineered their side-hinged doors to resist exactly that.
- Hinge-bolts standard — prevent lifting or levering during break-in attempts
- Euro Profile lock barrel with 5 keys + built-in top and bottom bolts
- 3-point lock upgrade for doors over 2.1m high
- Optional espagnolette lock for the second leaf with solid locking bars
- Adjustable aluminum alloy hinges with roller bearings
Full Customization
Unlike North American swing-out doors that come in 4 colors and one style, Ryterna gives you the same customization options as their sectional range:
- Any RAL color — 200+ options, factory-painted for durability

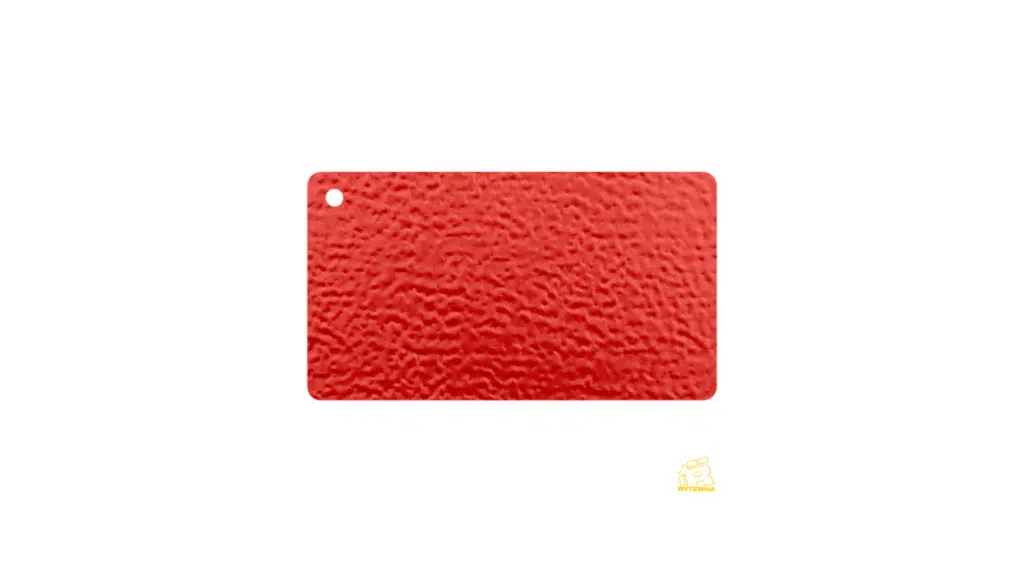

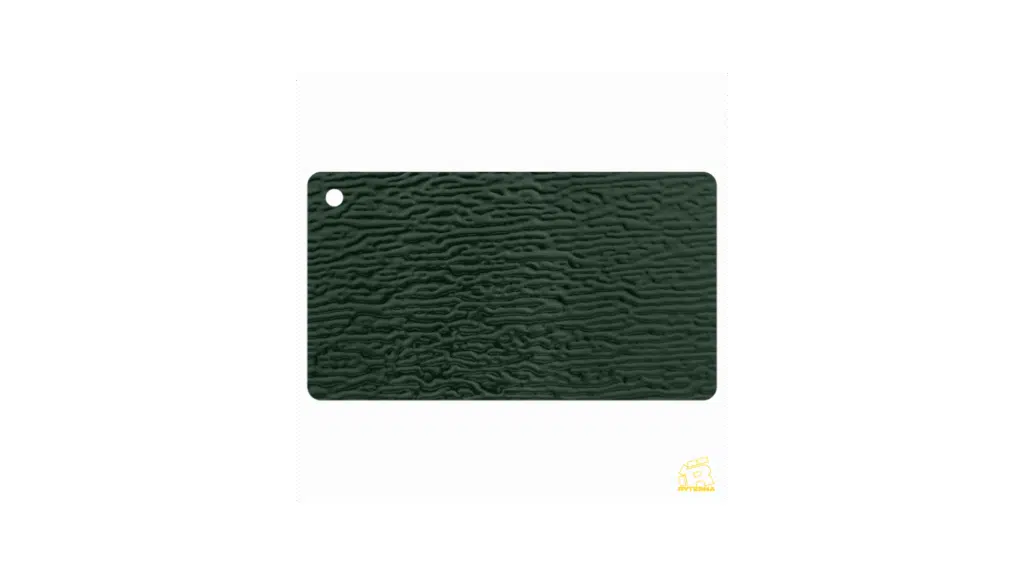

- Woodgrain, stucco, smooth, and metallic surface finishes
- Optional glazing inserts for natural light

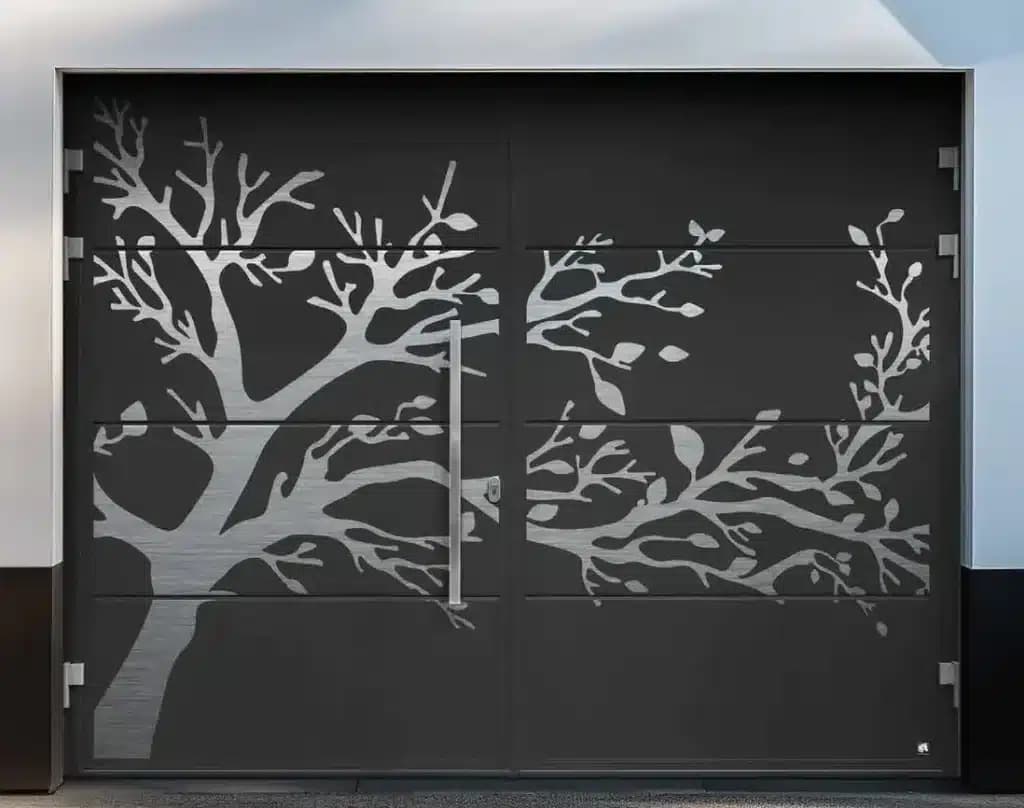

- Stainless steel decorative appliqués available
- 50/50 or asymmetric split (1/3–2/3 or custom ratio)
- Made-to-measure — no upcharge for custom sizes up to 3m × 3m
Warranty Coverage
Try asking another garage door company for a written warranty on a side-hinged door. Most can't provide one because they don't sell them. The few that do source cheap imported doors with vague "we stand behind our work" promises. Ryterna puts it in writing:
| Component | Warranty Period |
|---|---|
| Panels (rust-through, foam delamination) | 10 Years |
| Hardware (hinges, locks, handles) | 5 Years |
Explore Other Door Types
Overhead Sectional Doors: Our full residential garage door selection — Ryterna from entry-tier to fully custom, plus Canadian-made Northland.
Walk-Through Doors: Sectional doors with integrated pedestrian doors for convenient access.
Side-Sliding Doors: Horizontal operation along the wall — for garages with vehicle lifts or limited ceiling clearance.
Matching Entry & Garage Door Sets: Unified exterior with coordinated front entry and garage doors.
Side-Hinged Garage Door FAQ
A side-hinged garage door is a traditional swing-out design that opens on hinges mounted to the door frame like oversized French doors. Unlike overhead sectional doors, they don’t use tracks, springs, or cables, and require zero ceiling clearance.
Ryterna’s side-hinged doors use the same 40mm double-skin steel construction with freon-free PU foam insulation, achieving a U-value of 1.2 W/(m²·K). That’s comparable to their sectional door line and far superior to most North American swing-out doors.
Yes. Ryterna side-hinged doors are compatible with swing-arm openers for motorized operation. The opener mounts to the wall and connects to one or both leaves.
Standard maximum is 3,000mm wide × 2,400mm high, with an individual leaf width up to 1,500mm (59 inches). Larger dimensions, up to 3,200mm × 3,500mm, are available on request with Ryterna factory consultation. Custom split ratios (50/50, 1/3–2/3, or asymmetric) are standard options.
Yes. The 40mm insulated panels, perimeter rubber weathersealing, and choice of threshold profiles (sloping, L-shaped, or flat) are specifically designed to handle Calgary’s -30°C winters and chinook temperature swings.
Ryterna side-hinged doors include hinge-bolts (anti-levering), Euro Profile lock barrel with 5 keys, and built-in top/bottom bolts as standard. A 3-point lock upgrade is available for taller doors, and an espagnolette lock option is available for the second leaf.
A Ryterna SH2 side-hinged garage door in Calgary runs $4,325 to $5,935 installed for a standard 9ft × 7ft single-car configuration, depending on panel profile and whether you choose a standard or custom RAL colour. The Rib / Midrib Woodgrain / Flush tier starts at $4,325; the Slick / Midrib Smooth tier runs $4,925 to $5,545; the Traditional decorative-glazed-top tier runs $5,485 to $5,935. Installation, old-door removal, and delivery across our Calgary, Edmonton, and Saskatoon service areas are included. Upgrades like FV glazed panels, S5 stainless threshold covers, and Stabilus gas door stays are itemized in the pricing section above. SH2 Thermo tier is quoted separately based on variant and size.
SH2 is the standard construction: zinc-coated steel frame with 40mm foam-insulated double-skin panels. It is the right choice for detached or unheated garages. SH2 Thermo uses an aluminium frame with an engineered thermal break, a non-conductive barrier running through the frame profile that stops cold from bridging from the outdoor to indoor side. In a heated Calgary garage at -30°C, a standard SH2 steel frame will condense and frost up at the edges; the Thermo frame does not. SH2 Thermo is what Ryterna designed for converted workshops, home gyms, studios, and any garage running as year-round conditioned space. It comes in four variants, P, S, P+FV, S+FV, based on panel fill and whether you want a glazed top band.
Yes. This is one of the genuine use cases for side-hinged doors in older Calgary neighbourhoods. Homes built before the 1950s often have original carriage-door openings that cannot accept modern overhead sectional tracks without major frame modification. Ryterna’s Retro side-hinged family fits the original opening, swings the way the original door did, and delivers modern thermal and security performance in a historically accurate shell. This matters in neighbourhoods like Mount Royal, Elbow Park, Britannia, and Bridgeland.
Side-hinged doors swing outward, so snow accumulation and ice at the base of the door can block operation. The practical fixes are straightforward: position the door where the driveway is cleared routinely, install the S5 sloping 25mm threshold which minimizes snow catch, and choose Stabilus gas door stays if your garage faces open wind. Once cleared and properly specified for the site, SH2 doors operate reliably through Calgary winters.
